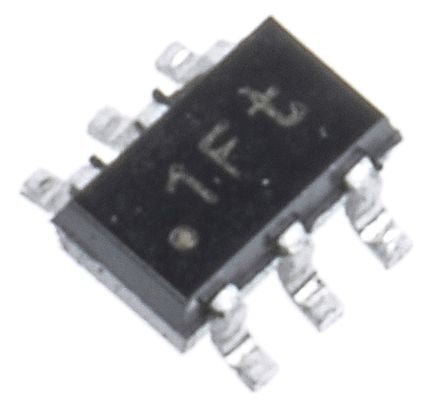

Nexperia BC847BS,115 Dual NPN Transistor, 100 mA, 45 V, 6-Pin SOT-363 [BC847BS,115]; 484-5059
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 45 V |
| Package Type | SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Minimum DC Current Gain | 200 |
| Transistor Configuration | Isolated |
| Maximum Collector Base Voltage | 50 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Dimensions | 1 x 2.2 x 1.35mm |
| Width | 1.35mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
| Length | 2.2mm |
| Maximum Base Emitter Saturation Voltage | 0.755 V |
| Maximum Collector Emitter Saturation Voltage | 0.3 V |
| Minimum Operating Temperature | -65 °C |
