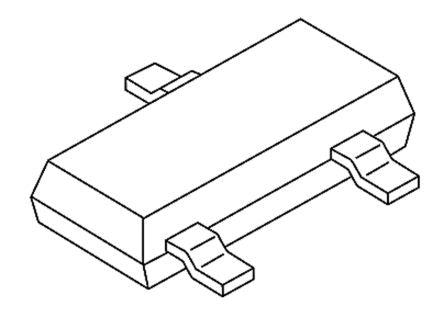

Nexperia BC847C,235 NPN Transistor, 100 mA, 45 V, 3-Pin TO-236 [BC847C,235]; 170-7952
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 45 V |
| Package Type | TO-236 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Minimum DC Current Gain | 110 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 50 V |
| Maximum Emitter Base Voltage | 6 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Collector Emitter Saturation Voltage | 400 mV |
| Minimum Operating Temperature | -65 °C |
| Width | 1.4mm |
| Maximum Base Emitter Saturation Voltage | 900 mV |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
| Dimensions | 3 x 1.4 x 1mm |
| Length | 3mm |
| Automotive Standard | AEC-Q101 |
