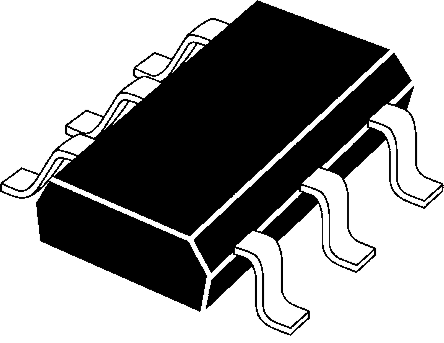

Nexperia BCM856BS,115 Dual PNP Transistor, 100 mA, 65 V, 6-Pin SOT-363 [BCM856BS,115]; 166-0092
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 65 V |
| Package Type | SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Minimum DC Current Gain | 200 |
| Transistor Configuration | Isolated |
| Maximum Collector Base Voltage | -80 V |
| Maximum Emitter Base Voltage | -5 V |
| Maximum Operating Frequency | 175 MHz |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Dimensions | 3 x 1.4 x 1.1mm |
| Maximum Collector Emitter Saturation Voltage | -400 mV |
| Minimum Operating Temperature | -55 °C |
| Width | 1.4mm |
| Height | 1.1mm |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
