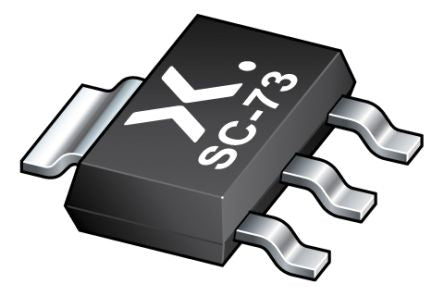

Nexperia BCP56-10TX NPN Transistor, 1 A, 80 V, 3-Pin SC-73, SOT223 [BCP56-10TX]; 151-2817
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 0.0416666666666667 |
| Maximum Collector Emitter Voltage | 80 V |
| Package Type | SC-73, SOT223 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.35 W |
| Minimum DC Current Gain | 40 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 180 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Height | 1.8mm |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q101 |
| Width | 3.7mm |
| Maximum Collector Emitter Saturation Voltage | 0.5 V |
| Dimensions | 6.7 x 3.7 x 1.8mm |
| Length | 6.7mm |
| Maximum Operating Temperature | +150 °C |
