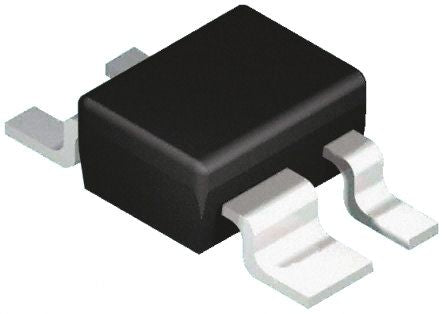

Nexperia BCV61 NPN Transistor, 100 mA, 30 V, 3-Pin SOT-143B [BCV61]; 165-8769
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Package Type | SOT-143B |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Minimum DC Current Gain | 100 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 30 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Dimensions | 3 x 1.4 x 1.1mm |
| Maximum Collector Emitter Saturation Voltage | 600 mV |
| Maximum Base Emitter Saturation Voltage | 900 mV |
| Width | 1.4mm |
| Height | 1.1mm |
| Minimum Operating Temperature | -65 °C |
