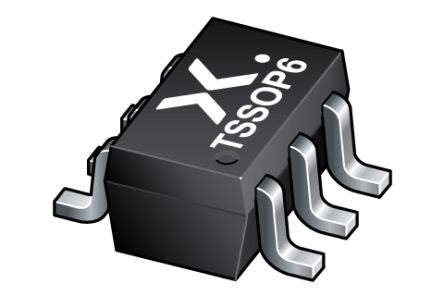

BSS138BKS,115 Dual N-Channel MOSFET, 320 mA, 60 V BSS138BK, 6-Pin TSSOP Nexperia [BSS138BKS,115]; 170-5413
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 320 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 6.5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.6V |
| Minimum Gate Threshold Voltage | 0.48V |
| Maximum Power Dissipation | 990 mW |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 2 |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 0.6 nC @ 4.5 V |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2.2mm |
| Width | 1.35mm |
| Minimum Operating Temperature | -55 °C |
| Series | BSS138BK |
