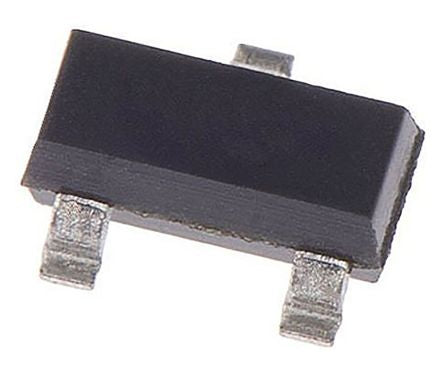

BSS138BKW,115 N-Channel MOSFET, 320 mA, 60 V, 3-Pin SOT-23 Nexperia [BSS138BKW,115]; 124-2290
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 320 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.6 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.6V |
| Minimum Gate Threshold Voltage | 0.48V |
| Maximum Power Dissipation | 310 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 0.6 nC @ 4.5 V |
| Length | 3mm |
| Width | 1.4mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
| Transistor Material | Si |
