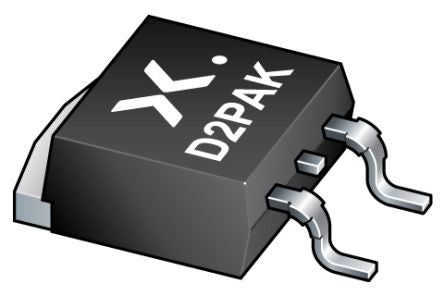

BUK7610-55AL,118 N-Channel MOSFET, 122 A, 55 V BUK7610, 3 + Tab-Pin D2PAK Nexperia [BUK7610-55AL,118]; 170-5350
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 122 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | D2PAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 20 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.4V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 300 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Width | 11mm |
| Minimum Operating Temperature | -55 °C |
| Height | 4.5mm |
| Typical Gate Charge @ Vgs | 124 nC @ 10 V |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +175 °C |
| Series | BUK7610 |
| Length | 10.3mm |
