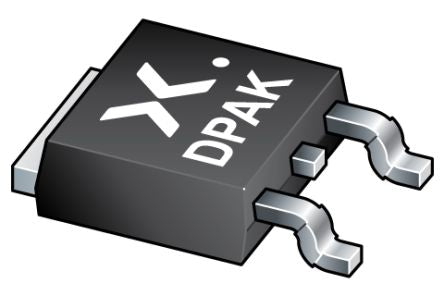

BUK9277-55A,118 N-Channel MOSFET, 18 A, 55 V, 3 + Tab-Pin DPAK Nexperia [BUK9277-55A,118]; 152-5559
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 18 A |
| Maximum Drain Source Voltage | 55 V |
| Package Type | DPAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 154 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.3V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 51 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 15 V |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 11 nC |
| Height | 2.38mm |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 6.22mm |
| Length | 6.73mm |
