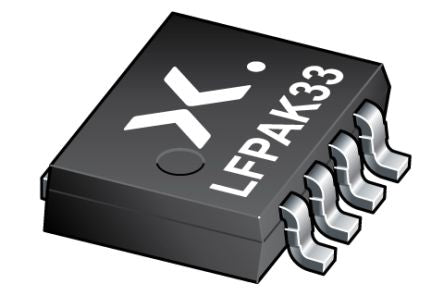

BUK9M34-100EX N-Channel MOSFET, 29 A, 100 V, 4-Pin LFPAK33, Power33 Nexperia [BUK9M34-100EX]; 152-7740
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 29 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | LFPAK33, Power33 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 97 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.45V |
| Minimum Gate Threshold Voltage | 1.4V |
| Maximum Power Dissipation | 79 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 15 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 2.6mm |
| Height | 0.9mm |
| Typical Gate Charge @ Vgs | 24.7 nC |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +175 °C |
| Length | 3.4mm |
