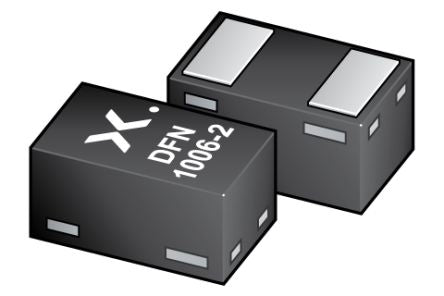

Nexperia, 8.2V Zener Diode ±2% 250 (Total Power Dissipation) mW, 40 (Non-Repetitive Peak Reverse Power Dissipation) W [BZX884-B8V2,315]; 153-2846
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 8.2V |
| Diode Configuration | Single |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |
| Package Type | DFN1006, SOD-882 |
| Zener Type | Voltage Regulator |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 700nA |
| Length | 1.02mm |
| Width | 0.62mm |
| Dimensions | 1.02 x 0.62 x 0.47mm |
| Automotive Standard | AEC-Q101 |
| Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |
| Forward Current | 200mA |
| Forward Voltage | 0.9V |
| Maximum Operating Temperature | +150 °C |
| Height | 0.47mm |
| Minimum Operating Temperature | -55 °C |
