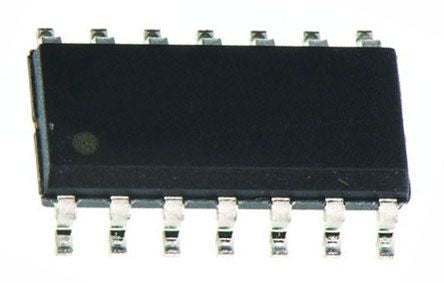

HEF4066BT,653 Nexperia, Analogue Switch SPST, 3 → 15 V, 14-Pin, SOIC [HEF4066BT,653]; 136-4812
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Configuration | SPST |
| Package Type | SO |
| Mounting Type | Surface Mount |
| Typical Single Supply Voltage | 3 → 15 V |
| Switch Type | Analogue Switch |
| Pin Count | 14 |
| Power Supply Type | Single |
| Input Signal Type | Single Ended |
| Output Signal Type | Single Ended |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Number of Channels per Chip | 8 |
| Number of Inputs per Element | 2 |
| Dimensions | 8.75 x 4 x 1.45mm |
| Multiplexer Architecture | 0.0840277777777778 |
| Length | 8.75mm |
| Maximum Power Dissipation | 500 mW |
| Width | 4mm |
| Propagation Delay Time | 20 (High to Low)ns |
| Number of Outputs per Element | 1 |
| Height | 1.45mm |
