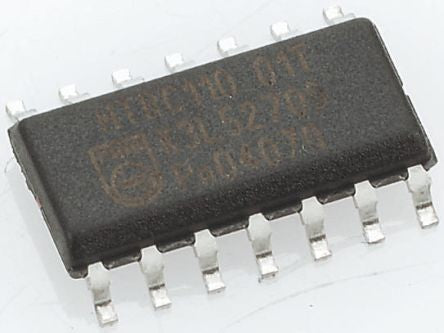

NXP HEF4077BT,652, Quad 2-Input XNOR Logic Gate, 3 → 15 V, 14-Pin SOIC [HEF4077BT,652]; 483-7941
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Function | XNOR |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Number of Inputs per Gate | 2 |
| Schmitt Trigger Input | No |
| Package Type | SOIC |
| Pin Count | 14 |
| Logic Family | 4000 |
| Maximum Operating Supply Voltage | 15 V |
| Maximum High Level Output Current | -3.6mA |
| Maximum Propagation Delay Time @ Maximum CL | 55 ns @ 15 V, 70 ns @ 10 V, 150 ns @ 5 V |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Low Level Output Current | 3.6mA |
| Length | 8.75mm |
| Dimensions | 8.75 x 4 x 1.45mm |
| Width | 4mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Temperature | -40 °C |
| Height | 1.45mm |
| Maximum Operating Temperature | +85 °C |
