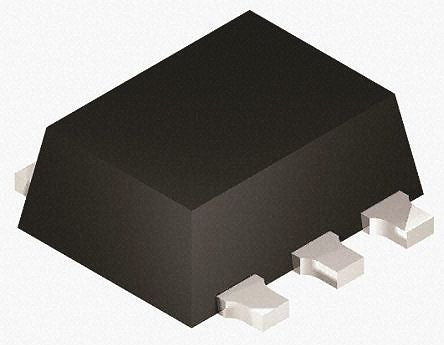

NX1029X,115 Dual N/P-Channel MOSFET, 170 mA, 330 mA, 50 V, 60 V, 6-Pin SOT-666 Nexperia [NX1029X,115]; 166-0096
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 170 mA, 330 mA |
| Maximum Drain Source Voltage | 50 V, 60 V |
| Package Type | SOT-666 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 3.6 Ω, 13.5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.1V |
| Minimum Gate Threshold Voltage | 1.1V |
| Maximum Power Dissipation | 500 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
| Transistor Material | Si |
| Width | 1.3mm |
| Minimum Operating Temperature | -55 °C |
| Height | 0.6mm |
| Typical Gate Charge @ Vgs | 0.26 nC @ 5 V, 0.5 nC @ 4.5 V |
