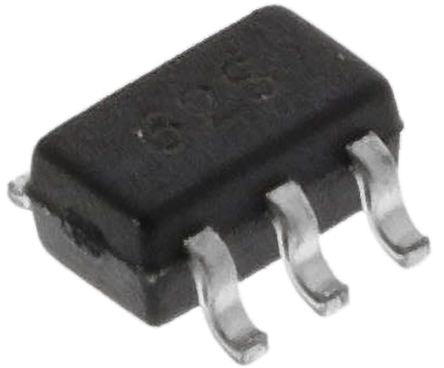

NX3008CBKS,115 Dual N/P-Channel MOSFET, 200 mA, 350 mA, 30 V NX3008CBKS, 6-Pin SOT-363 Nexperia [NX3008CBKS,115]; 136-4807
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 200 mA, 350 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 1.4 Ω, 4.1 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.1V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 990 mW |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 0.52 nC @ 4.5 V, 0.55 nC @ -4.5 V |
| Height | 1mm |
| Series | NX3008CBKS |
| Width | 1.35mm |
| Length | 2.2mm |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +150 °C |
