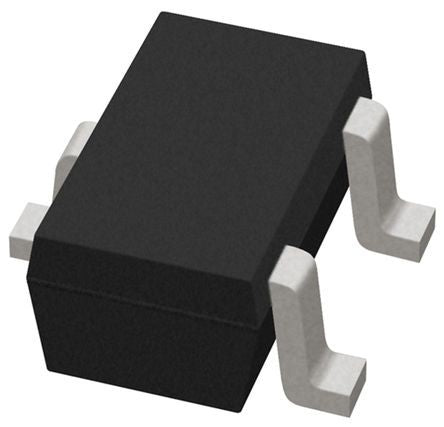

NX3008NBKW,115 N-Channel MOSFET, 350 mA, 30 V NX3008NBKW, 3-Pin SOT-323 Nexperia [NX3008NBKW,115]; 136-4804
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 350 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-323 (SC-70) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.4 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.1V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 830 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.2V |
| Length | 2.2mm |
| Width | 1.35mm |
| Typical Gate Charge @ Vgs | 0.52 nC @ 4.5 V |
| Height | 1mm |
| Series | NX3008NBKW |
| Automotive Standard | AEC-Q101 |
