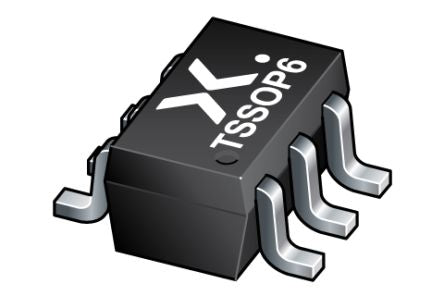

NX3020NAKS,115 Dual N-Channel MOSFET, 180 mA, 30 V NX3020NAKS, 6-Pin TSSOP Nexperia [NX3020NAKS,115]; 170-4878
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 180 mA |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 13 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.5V |
| Minimum Gate Threshold Voltage | 0.8V |
| Maximum Power Dissipation | 1.1 W |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 2 |
| Length | 2.2mm |
| Maximum Operating Temperature | +150 °C |
| Series | NX3020NAKS |
| Height | 1mm |
| Typical Gate Charge @ Vgs | 0.34 nC @ 4.5 V |
| Minimum Operating Temperature | -55 °C |
| Width | 1.35mm |
