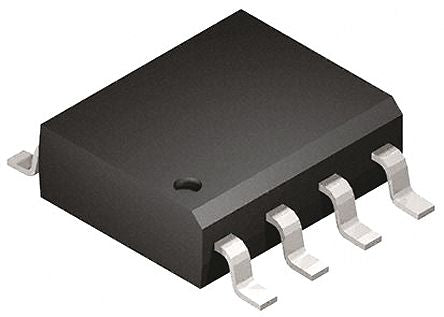

Nexperia PBSS4032SPN,115 Dual NPN + PNP Transistor, 5.7 A, 30 V, 8-Pin SOT-96 [PBSS4032SPN,115]; 165-8560
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum DC Collector Current | 5.7 A |
| Maximum Collector Emitter Voltage | 30 V |
| Package Type | SOT-96 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 2.3 W |
| Minimum DC Current Gain | 200 (PNP), 300 (NPN) |
| Transistor Configuration | Isolated |
| Maximum Collector Base Voltage | -30 V, 30 V |
| Maximum Emitter Base Voltage | -5 (PNP) V, 5 (NPN) V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Width | 4mm |
| Maximum Base Emitter Saturation Voltage | -0.9 (PNP) V, 1.05 (NPN) V |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 5 x 4 x 1.75mm |
| Height | 1.75mm |
| Length | 5mm |
| Maximum Collector Emitter Saturation Voltage | -165 (PNP) mV, 450 (NPN) mV |
