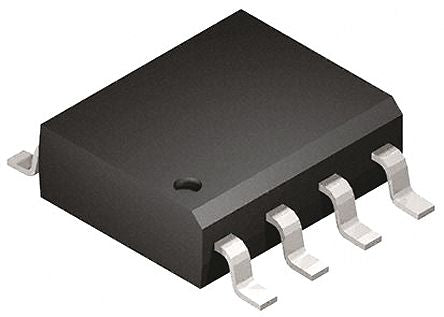

Nexperia PBSS4350SPN,115 Dual NPN + PNP Transistor, 2.7 A, 50 V, 8-Pin SOT-96 [PBSS4350SPN,115]; 165-8637
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum DC Collector Current | 2.7 A |
| Maximum Collector Emitter Voltage | 50 V |
| Package Type | SOT-96 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 2 W |
| Minimum DC Current Gain | 200 (PNP), 300 (NPN) |
| Transistor Configuration | Isolated |
| Maximum Collector Base Voltage | -50 V, 50 V |
| Maximum Emitter Base Voltage | -5 (PNP) V, 5 (NPN) V |
| Maximum Operating Frequency | 1 MHz |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Width | 4mm |
| Maximum Base Emitter Saturation Voltage | -1.1 (PNP) V, 1.2 (NPN) V |
| Minimum Operating Temperature | -65 °C |
| Height | 1.75mm |
| Maximum Operating Temperature | +150 °C |
| Length | 5mm |
| Dimensions | 5 x 4 x 1.75mm |
| Maximum Collector Emitter Saturation Voltage | -90 (NPN) mV, 340 (NPN) mV |
