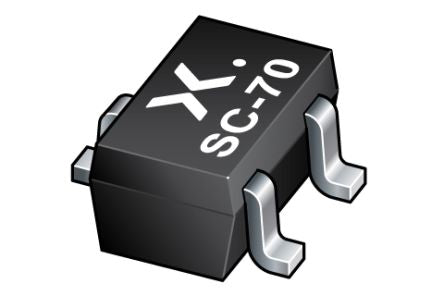

Nexperia, PDTA124EU,135 PNP Digital Transistor, 100 mA -50 V 22 kΩ, Ratio Of 1, 3-Pin SC-70, SOT-323 [PDTA124EU,135]; 153-2913
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | PNP |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | -50 V |
| Typical Input Resistor | 22 kΩ |
| Mounting Type | Surface Mount |
| Base-Emitter Resistor | 22kΩ |
| Package Type | SC-70, SOT-323 |
| Pin Count | 3 |
| Minimum DC Current Gain | 60 |
| Transistor Configuration | Single |
| Maximum Power Dissipation | 200 mW |
| Maximum Collector Emitter Saturation Voltage | -150 mV |
| Maximum Emitter Base Voltage | -10 V |
| Typical Resistor Ratio | 1 |
| Configuration | Single |
| Automotive Standard | AEC-Q101 |
| Dimensions | 2.2 x 1.35 x 1mm |
| Length | 2.2mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
| Width | 1.35mm |
| Minimum Operating Temperature | -65 °C |
