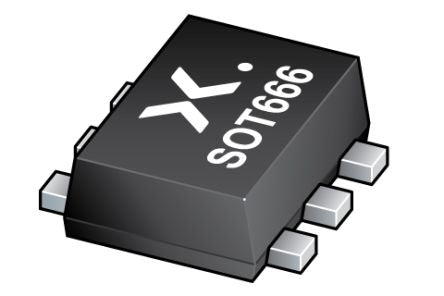

Nexperia, PEMD12,115, Dual NPN + PNP Digital Transistor, 100 mA 50 V 47 kΩ, Ratio Of 1, 6-Pin SOT-666 [PEMD12,115]; 153-2841
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Number of Elements per Chip | 2 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 47 kΩ |
| Mounting Type | Surface Mount |
| Base-Emitter Resistor | 47kΩ |
| Package Type | SOT-666 |
| Pin Count | 6 |
| Minimum DC Current Gain | 80 |
| Maximum Power Dissipation | 200 mW |
| Maximum Collector Emitter Saturation Voltage | 0.15 V |
| Maximum Emitter Base Voltage | 10 V |
| Typical Resistor Ratio | 1 |
| Configuration | Dual |
| Minimum Operating Temperature | -65 °C |
| Width | 1.3mm |
| Length | 1.7mm |
| Height | 0.6mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 1.7 x 1.3 x 0.6mm |
| Automotive Standard | AEC-Q101 |
