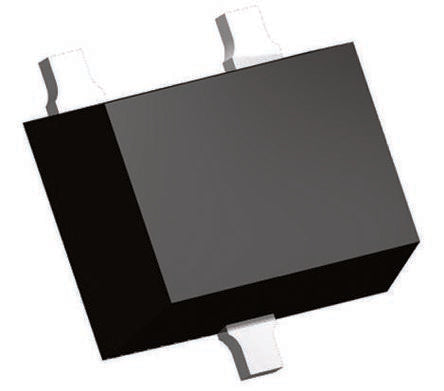

Nexperia PESD24VS2UQ,115, Dual Uni-Directional ESD Protection Diode, 150W, 3-Pin SOT-663 [PESD24VS2UQ,115]; 166-1546
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 70V |
| Minimum Breakdown Voltage | 26.5V |
| Mounting Type | Surface Mount |
| Package Type | SOT-663 |
| Maximum Reverse Stand-off Voltage | 24V |
| Pin Count | 3 |
| Peak Pulse Power Dissipation | 150W |
| Maximum Peak Pulse Current | 3A |
| ESD Protection | Yes |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Maximum Reverse Leakage Current | 50nA |
| Test Current | 5mA |
| Width | 1.3mm |
| Height | 0.6mm |
| Dimensions | 1.7 x 1.3 x 0.6mm |
| Length | 1.7mm |
