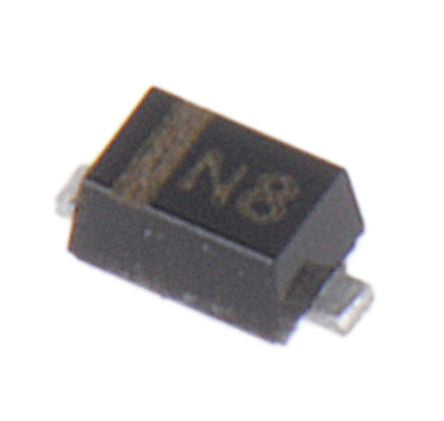

Nexperia PESD5Z3.3,115, Uni-Directional TVS Diode, 260W, 2-Pin SOD-523 [PESD5Z3.3,115]; 780-5385
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 18V |
| Minimum Breakdown Voltage | 5V |
| Mounting Type | Surface Mount |
| Package Type | SOD-523 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 260W |
| Maximum Peak Pulse Current | 20A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.25mm |
| Dimensions | 1.25 x 0.85 x 0.65mm |
| Test Current | 1mA |
| Height | 0.65mm |
| Width | 0.85mm |
| Maximum Reverse Leakage Current | 50nA |
