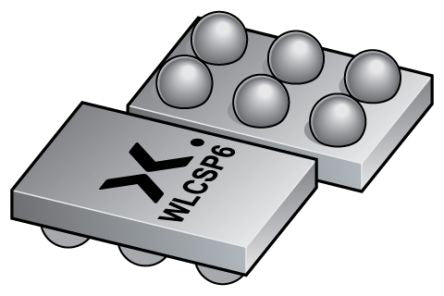

PMCM6501VPEZ 3 P-Channel MOSFET, -8.2 A, -12 V, 2-Pin WLCSP Nexperia [PMCM6501VPEZ]; 153-1928
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | -8.2 A |
| Maximum Drain Source Voltage | -12 V |
| Package Type | WLCSP |
| Mounting Type | Surface Mount |
| Pin Count | 2 |
| Maximum Drain Source Resistance | 60 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | -0.9V |
| Minimum Gate Threshold Voltage | -0.4V |
| Maximum Power Dissipation | 12500 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 8 V |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -55 °C |
| Width | 0.95mm |
| Length | 1.45mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.315mm |
| Typical Gate Charge @ Vgs | 19.6 nC |
