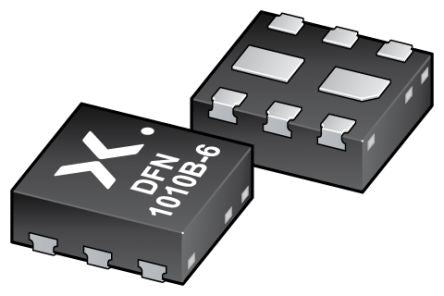

PMCXB900UELZ Hex N/P-Channel MOSFET, 600 mA, 20 V, 8-Pin DFN1010B-6, SOT1216 Nexperia [PMCXB900UELZ]; 153-0727
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 600 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | DFN1010B-6, SOT1216 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.95V |
| Minimum Gate Threshold Voltage | 0.45V |
| Maximum Power Dissipation | 4025 mW |
| Maximum Gate Source Voltage | 8 V |
| Number of Elements per Chip | 6 |
| Width | 1.05mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.36mm |
| Typical Gate Charge @ Vgs | 0.4 nC |
| Length | 1.15mm |
| Minimum Operating Temperature | -55 °C |
