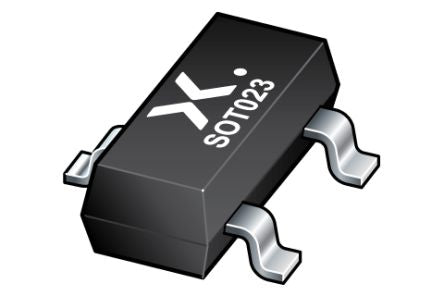

PMV230ENEAR 3 N-Channel MOSFET, 1.5 A, 60 V, 3-Pin SOT-23 Nexperia [PMV230ENEAR]; 153-1898
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.5 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT23, TO-236AB |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 222 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.7V |
| Minimum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 1.45 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 3 |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 3.9 nC |
| Minimum Operating Temperature | -55 °C |
| Height | 1mm |
| Width | 1.4mm |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
