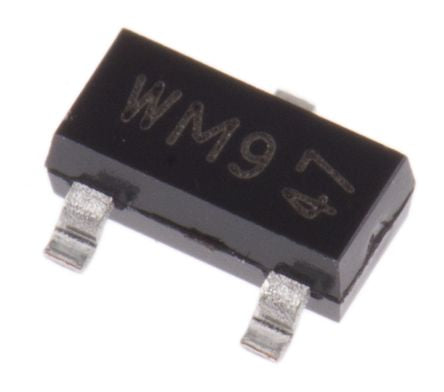

PMV65XP,215 P-Channel MOSFET, 3.9 A, 20 V, 3-Pin SOT-23 Nexperia [PMV65XP,215]; 103-8142
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 3.9 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-23 (TO-236AB) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 76 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.9V |
| Minimum Gate Threshold Voltage | 0.47V |
| Maximum Power Dissipation | 1.92 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Typical Gate Charge @ Vgs | 7.6 nC @ 4.5 V |
| Height | 1mm |
| Transistor Material | Si |
| Width | 1.4mm |
