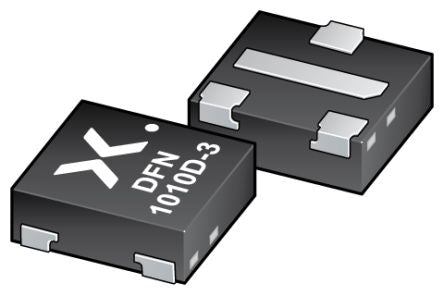

PMXB65ENEZ 3 N-Channel MOSFET, 3.2 A, 30 V, 4-Pin DFN1010D-3, SOT1215 Nexperia [PMXB65ENEZ]; 153-0740
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 3.2 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | DFN1010D-3, SOT1215 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 107 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 8.33 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 3 |
| Typical Gate Charge @ Vgs | 6 nC |
| Height | 0.36mm |
| Maximum Operating Temperature | +150 °C |
| Length | 1.15mm |
| Minimum Operating Temperature | -55 °C |
| Width | 1.05mm |
