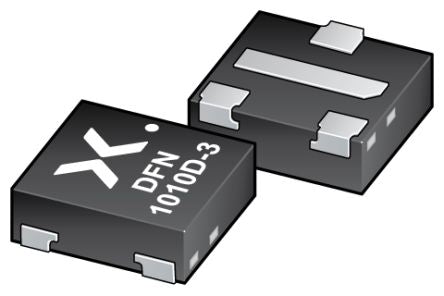

PMXB75UPEZ 3 P-Channel MOSFET, -2.9 A, -20 V, 4-Pin DFN1010D-3, SOT1215 Nexperia [PMXB75UPEZ]; 153-0723
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | -2.9 A |
| Maximum Drain Source Voltage | -20 V |
| Package Type | DFN1010D-3, SOT1215 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 950 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | -1V |
| Minimum Gate Threshold Voltage | -0.4V |
| Maximum Power Dissipation | 8330 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 8 V |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -55 °C |
| Length | 1.15mm |
| Width | 1.05mm |
| Typical Gate Charge @ Vgs | 6.8 nC |
| Maximum Operating Temperature | +150 °C |
| Height | 0.36mm |
