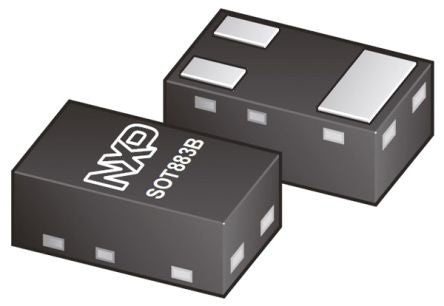

PMZB670UPE,315 P-Channel MOSFET, 680 mA, 20 V, 3-Pin SOT-883B Nexperia [PMZB670UPE,315]; 798-2817
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 680 mA |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-883B |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 850 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.3V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 2.7 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Height | 0.36mm |
| Minimum Operating Temperature | -55 °C |
| Width | 0.65mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Length | 1.05mm |
| Typical Gate Charge @ Vgs | 0.76 nC @ 4.5 V |
