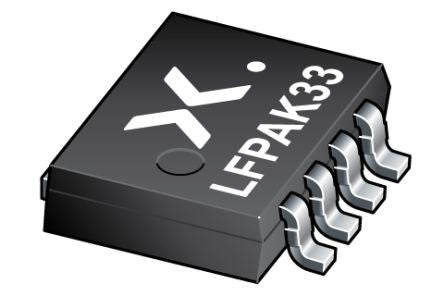

PSMN011-60MSX N-Channel MOSFET, 61 A, 60 V, 4-Pin LFPAK33, SOT1210 Nexperia [PSMN011-60MSX]; 152-5575
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 61 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | LFPAK33, SOT1210 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 24.4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.6V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 91 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Width | 2.7mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 23 nC |
| Height | 0.9mm |
| Maximum Operating Temperature | +175 °C |
| Length | 3.4mm |
