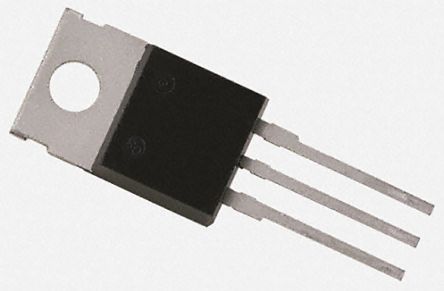

PSMN4R5-40PS,127 N-Channel MOSFET, 100 A, 40 V, 3-Pin TO-220AB Nexperia [PSMN4R5-40PS,127]; 166-0071
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4.6 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 148 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Width | 4.7mm |
| Typical Gate Charge @ Vgs | 42.3 nC @ 10 V |
| Height | 16mm |
| Maximum Operating Temperature | +175 °C |
| Length | 10.3mm |
