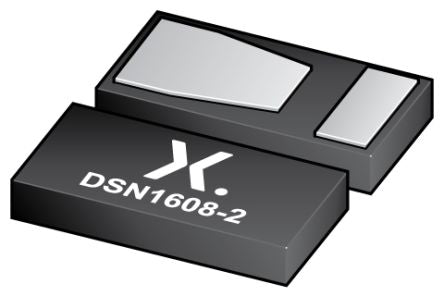

Nexperia PTVS15VZ1USKYL, Uni-Directional ESD Protection Diode, 1900W, 2-Pin DSN1608 [PTVS15VZ1USKYL]; 152-7758
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 36V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | DSN1608 |
| Maximum Reverse Stand-off Voltage | 15V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1900W |
| Maximum Peak Pulse Current | 52A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.28mm |
| Capacitance | 340pF |
| ESD Voltage | 30kV |
| Dimensions | 1.65 x 0.85 x 0.28mm |
| Width | 0.85mm |
| Maximum Reverse Leakage Current | 200nA |
| Length | 1.65mm |
