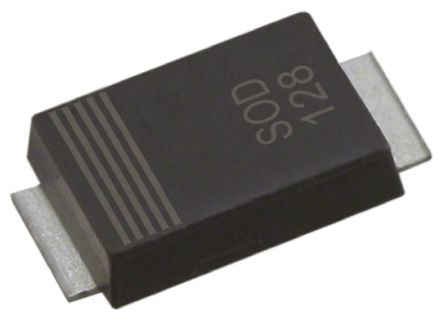

Nexperia PTVS3V3P1UTP,115, Uni-Directional TVS Diode, 600W, 2-Pin SOD-128 [PTVS3V3P1UTP,115]; 166-0130
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 8V |
| Minimum Breakdown Voltage | 5.2V |
| Mounting Type | Surface Mount |
| Package Type | SOD-128 |
| Maximum Reverse Stand-off Voltage | 3.3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 75A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +185 °C |
| Length | 4mm |
| Dimensions | 4 x 2.7 x 1.1mm |
| Test Current | 10mA |
| Maximum Reverse Leakage Current | 600µA |
| Width | 2.7mm |
| Height | 1.1mm |
