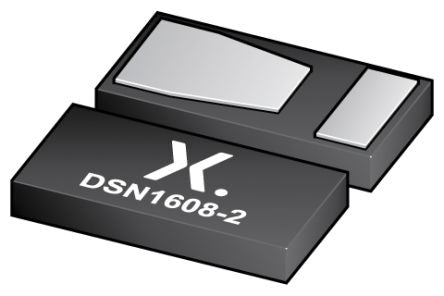

Nexperia PTVS5V0Z1USKNYL, Uni-Directional TVS Diode, 1200W, 2-Pin DSN1608 [PTVS5V0Z1USKNYL]; 151-3189
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 18V |
| Minimum Breakdown Voltage | 6.4V |
| Mounting Type | Surface Mount |
| Package Type | DSN1608 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1200W |
| Maximum Peak Pulse Current | 80A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.28mm |
| ESD Voltage | 30kV |
| Length | 1.65mm |
| Capacitance | 1.2nF |
| Width | 0.85mm |
| Maximum Reverse Leakage Current | 1µA |
| Dimensions | 1.65 x 0.85 x 0.28mm |
