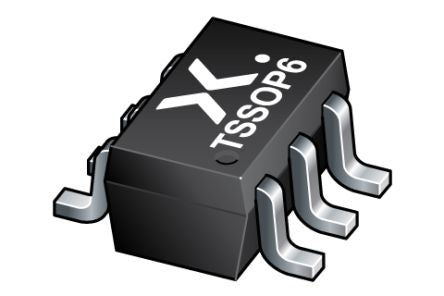

Nexperia, PUMD2,165, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 22 kΩ, Ratio Of 1, 6-Pin SOT-363 [PUMD2,165]; 170-8041
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Elements per Chip | 2 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 22 kΩ |
| Mounting Type | Surface Mount |
| Package Type | SOT-363 |
| Pin Count | 6 |
| Minimum DC Current Gain | 60 |
| Transistor Configuration | Dual Base |
| Maximum Power Dissipation | 300 mW |
| Maximum Collector Emitter Saturation Voltage | 0.15 V |
| Maximum Emitter Base Voltage | 10 V |
| Typical Resistor Ratio | 1 |
| Configuration | Dual |
| Dimensions | 2.2 x 1.35 x 1mm |
| Width | 1.35mm |
| Automotive Standard | AEC-Q101 |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Length | 2.2mm |
