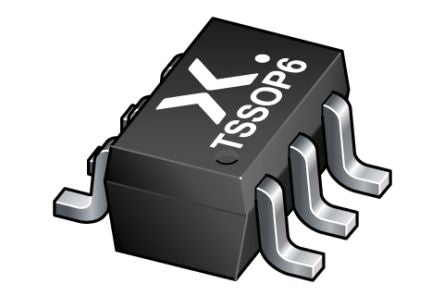

Nexperia, PUMH7,115, Dual NPN Resistor-equipped Transistor, 100 mA 50 V Ratio Of 4.7 kΩ, 6-Pin SOT [PUMH7,115]; 151-2815
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Number of Elements per Chip | 2 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Typical Input Resistor | 4.7 kΩ |
| Mounting Type | Surface Mount |
| Package Type | SOT |
| Pin Count | 6 |
| Minimum DC Current Gain | 200 |
| Maximum Power Dissipation | 200 (Per Transistor) mW, 300 (Per Device) mW |
| Maximum Collector Emitter Saturation Voltage | 0.1 V |
| Configuration | Dual |
| Maximum Operating Temperature | +150 °C |
| Length | 2.2mm |
| Dimensions | 2.2 x 1.35 x 1.1mm |
| Height | 1.1mm |
| Minimum Operating Temperature | -65 °C |
| Width | 1.35mm |
