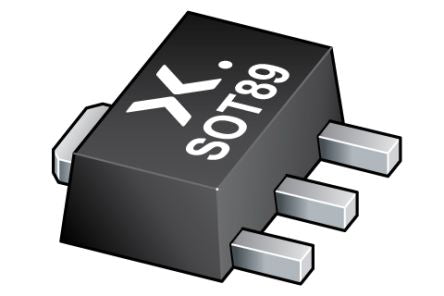

Nexperia PXTA42,115 NPN Transistor, 100 mA, 300 V, 3-Pin SOT-89 [PXTA42,115]; 153-2971
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 300 V |
| Package Type | SOT-89 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1300 mW |
| Minimum DC Current Gain | 40 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 300 V |
| Maximum Emitter Base Voltage | 300 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Length | 4.6mm |
| Dimensions | 4.6 x 2.6 x 1.6mm |
| Maximum Collector Emitter Saturation Voltage | 500 mV |
| Maximum Base Emitter Saturation Voltage | 900 mV |
| Width | 2.6mm |
| Height | 1.6mm |
