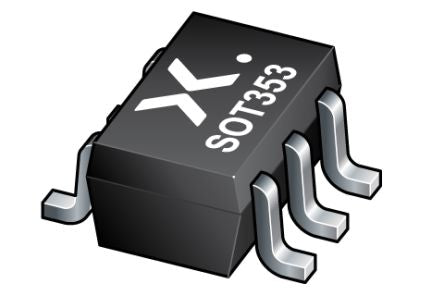

Nexperia Dual, 10V Zener Diode, Dual ±2% [PZU10DB2,115]; 153-2909
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 10V |
| Diode Configuration | Dual |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 2 |
| Maximum Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |
| Package Type | SOT-353, TSSOP |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | ±2% |
| Pin Count | 5 |
| Test Current | 5mA |
| Maximum Reverse Leakage Current | 0.1µA |
| Length | 2.2mm |
| Width | 1.35mm |
| Dimensions | 2.2 x 1.35 x 1mm |
| Forward Voltage | 1.1V |
| Forward Current | 200mA |
| Power Dissipation | 40 (Non-Repetitive Peak Reverse Power Dissipation) W, 250 (Total Power Dissipation) mW |
| Minimum Operating Temperature | -55 °C |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q101 |
