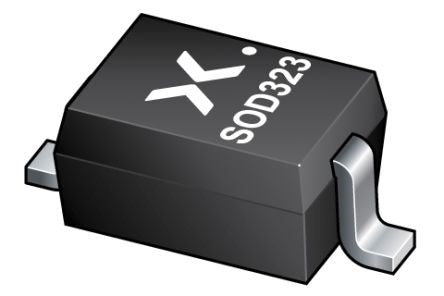

Nexperia, 6V Zener Diode ±5% 40 (Peak Reverse Power Dissipation) W, 490 (Total Power Dissipation) mW SMT 2-Pin [PZU6.8BA,115]; 151-2656
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Nominal Zener Voltage | 6V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 40 (Peak Reverse Power Dissipation) W, 490 (Total Power Dissipation) mW |
| Package Type | SC-76, SOD-323 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 5mA |
| Length | 1.8mm |
| Width | 1.35mm |
| Dimensions | 1.8 x 1.35 x 1.1mm |
| Height | 1.1mm |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Power Dissipation | 40 (Peak Reverse Power Dissipation) W, 490 (Total Power Dissipation) mW |
| Forward Voltage | 1.1V |
| Forward Current | 200mA |
| Typical Voltage Temperature Coefficient | 3.4mV/K |
| Minimum Operating Temperature | -55 °C |
