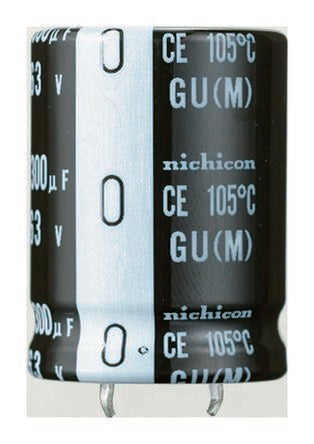

Nichicon 1000μF 160V dc Aluminium Electrolytic Capacitor, Through Hole 25 (Dia.) x 40mm +105°C 25mm 10mm [LGU2C102MELA]; 162-0325
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1000 µF |
| Voltage | 160 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25 (Dia.) x 40mm |
| Height | 40mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 10mm |
| Lifetime | 3000h |
| Series | GU |
| Tolerance | ±20% |
| Leakage Current | 1200 μA |
| Ripple Current | 2.25A |
