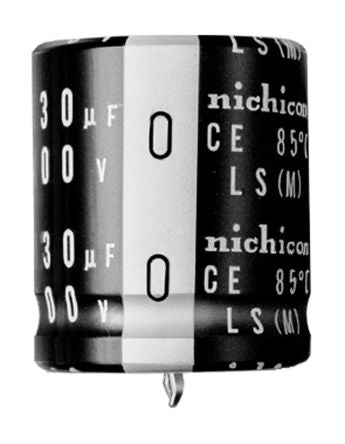

Nichicon 220μF 200V dc Aluminium Electrolytic Capacitor, Through Hole 20 (Dia.) x 25mm +85°C 20mm 10mm [LLS2D221MELY]; 167-1408
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 200 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 20 (Dia.) x 25mm |
| Height | 25mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 20mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 3000h |
| Lead Pitch | 10mm |
| Series | LS |
| Leakage Current | 0.62 mA |
| Tolerance | ±20% |
| Ripple Current | 1.19A |
