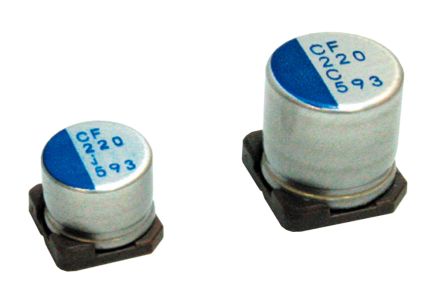

Capacitor Polymer SMT -55°C to 105°C 16V [PCF1C331MCL1GS]; 187-2358
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 300 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 10.3 x 10.3 x 12.6mm |
| Height | 12.6mm |
| Length | 10.3mm |
| Depth | 10.3mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.6mm |
| Lifetime | 2000h |
| Series | CF |
| Equivalent Series Resistance | 14mΩ |
| Leakage Current | 1.056 mA |
| Polarised | Polar |
| Tolerance | ±20% |
| Ripple Current | 5A |
| Dissipation Factor | 0.0012 |
