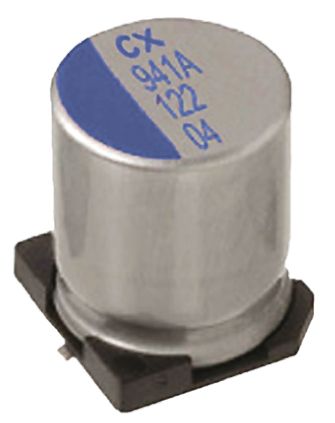

Nichicon 150μF 20V dc Aluminium Polymer Capacitor, Surface Mount 8 (Dia.) x 11.9mm +125°C 8mm 3.2mm [PCX1D151MCL1GS]; 167-1045
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 20 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 8 (Dia.) x 11.9mm |
| Height | 11.9mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 3000h |
| Lead Pitch | 3.2mm |
| Series | CX |
| Leakage Current | 600 μA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 28mΩ |
| Polarised | Polar |
| Ripple Current | 860mArms |
