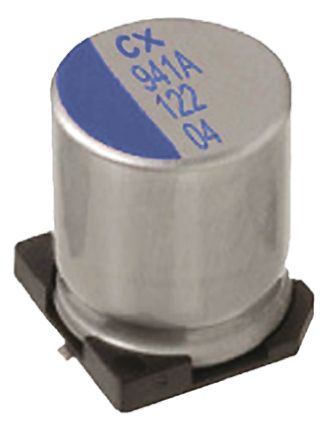

Nichicon 82μF 25V dc Aluminium Polymer Capacitor, Surface Mount 10 (Dia.) x 7.9mm +125°C 10mm 4.6mm [PCX1E820MCL1GS]; 173-3382
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 82 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 10 (Dia.) x 7.9mm |
| Height | 7.9mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 3000h |
| Lead Pitch | 4.6mm |
| Series | CX |
| Tolerance | ±20% |
| Equivalent Series Resistance | 36mΩ |
| Ripple Current | 800mArms |
| Leakage Current | 410 μA |
