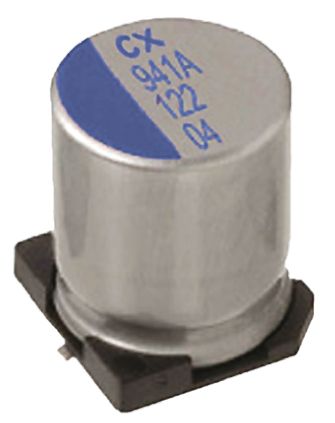

Nichicon 100μF 35V dc Aluminium Polymer Capacitor, Surface Mount 10 (Dia.) x 12.6mm +125°C 10mm 4.6mm [PCX1V101MCL1GS]; 173-3412
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 10 (Dia.) x 12.6mm |
| Height | 12.6mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 4.6mm |
| Lifetime | 3000h |
| Series | CX |
| Equivalent Series Resistance | 29mΩ |
| Polarised | Polar |
| Ripple Current | 990mArms |
| Tolerance | ±20% |
| Leakage Current | 700 μA |
