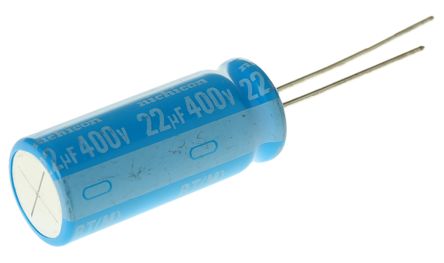

Nichicon 22μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 x 31.5mm +125°C 12.5mm 5mm [UBT2G220MHD8]; 762-1916
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 400 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 x 31.5mm |
| Height | 31.5mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 5mm |
| Lifetime | 2000h |
| Series | BT |
| Ripple Current | 142mArms |
| Tolerance | ±20% |
| Leakage Current | 0.04 CV + 100 μA (CV>1000 @ 1 minute), 0.1 CV + 40 μA (CV≤1000 @ 1 minute) |
