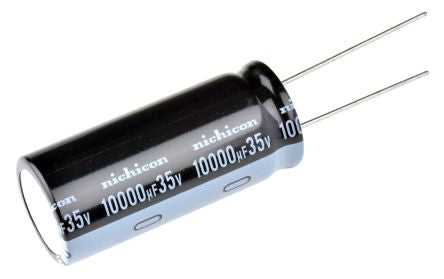

Nichicon 10000μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 22 (Dia.) x 50mm +105°C 22mm 10mm [UVZ1V103MRD]; 167-1065
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10000 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 22 (Dia.) x 50mm |
| Height | 50mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 22mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 10mm |
| Lifetime | 1000h |
| Series | VZ |
| Leakage Current | 10500 μA |
| Ripple Current | 2.65A |
| Tolerance | ±20% |
