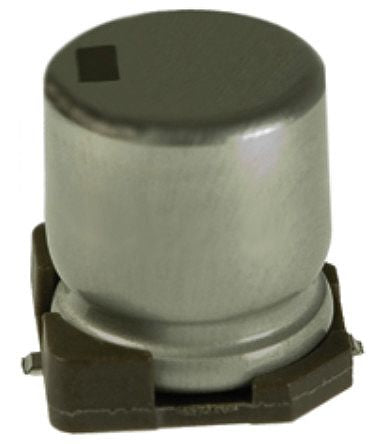

Nichicon 470μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10mm +105°C 10mm 4.5mm [UWD1E471MCL1GS]; 843-2613
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10mm |
| Height | 10mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.5mm |
| Lifetime | 5000h |
| Series | WD |
| Polarised | Polar |
| Leakage Current | 117.5 μA |
| Ripple Current | 670mA |
| Tolerance | ±20% |
