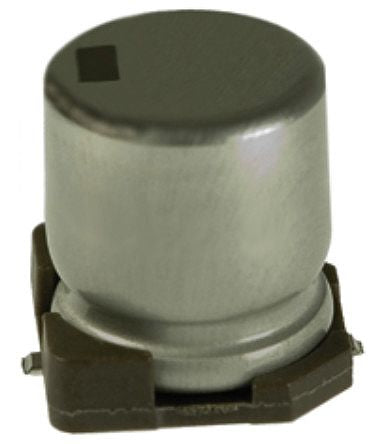

Nichicon 56μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10mm +105°C 8mm 3.1mm [UWD1H560MCL1GS]; 843-2666
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 56 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 10mm |
| Height | 10mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.1mm |
| Lifetime | 5000h |
| Series | WD |
| Tolerance | ±20% |
| Ripple Current | 300mA |
| Polarised | Polar |
| Leakage Current | 28 μA |
